20w 30w 50w Fiber Laser Marking Machine Engraving can do: 1. Black Marking on Alumina. This adopts MOPA laser generator with an adjustable pulse width to mark black on alumina. 2. Color Engraving on Metal. This requires some adjustments and attempts on the parameters according to the material. Various colors can be printed on stainless steel. 3. Black Marking on Metal. Not to mention this, it’s almost the same as the second point. 4. Online Flying Marking , it combine the engraver with the assembly line, marking while feeding, so that we can greatly improve our work efficiency for production lines.

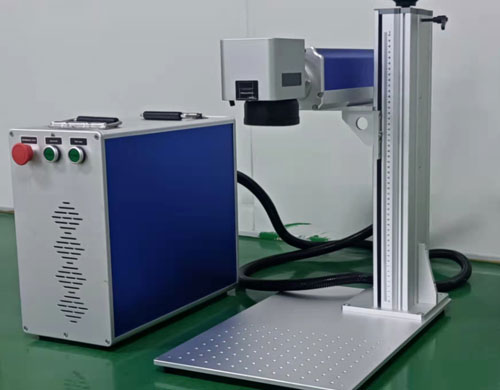

20w 30w 50w Fiber Laser Marking Machine specification details

# Laser source: 20w/30w/50w Raycus/JPT Laser Source

# Working area: 100*100mm/200*200mm

# Original Beijing Sino galvo laser head 7110A

# BJJCZ control card

#Automatic lift +Automatic focus

# Red point: Clear the working path

# Graphic Format Supported: AI/PLT/DXF/BMP/DST/DWG/LAS/DXP/STL

# Certification: CE FDA

# Warranty: 3 Years

# Control Software: Original EZCAD2 Software

# Full necessary parts for the laser marking machine

# Foot pedal

# Spare switch

20w 30w 50w Fiber Laser Marking Machine Application

20w 30w 50w Fiber Laser Marking engravers are widely used in computer accessories, integrated circuit chips, clocks and watches, industrial bearings, electronic components, auto parts, aerospace devices, home appliances, molds, wires and cables, hardware tools, food graphic and text markings in jewelry, packaging, credit card, military, tobacco, and more fields, as well as industrial mass production, assembly line production, and high-end ultra-fine printing.

Deep laser engraving machine for metal with 20 30 50 watt fiber laser source is the best way for 3D relief engraving on metal (guns, firearms, parts, tools, stainless steel, titanium, aluminum, brass) and nonmetal surface. The laser engraving system can also cut thin metals.
