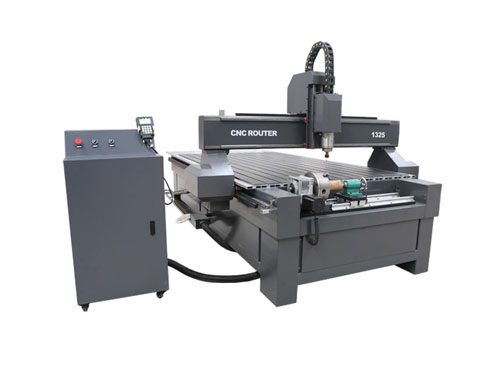

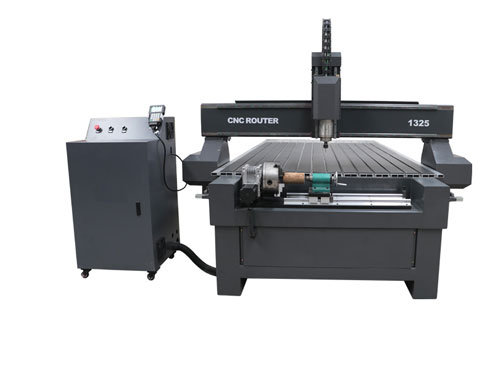

4axis CNC Router Machine with Rotary Table is based on 3 axis, and the 4th axis (A axis) is added to the rotary axis, it called 4 axis table model, best popular in 2022, 4 axis is divided into four-axis three-linking and four-axis four-linking CNC machines, adding a rotating axis and the control system is also a four-axis linkage system to be called a true four-axis linkage CNC machine. Because of the rotary motion of the 4th rotary axis, 3D machining of cylindrical, arc, and circular surfaces is realized.If the 4 axis you purchased has only three feed axes (X, Y, Z), the Y axis can be manually replaced with a rotary axis, and only a maximum of three axes can be linked. This is a four-axis three-link CNC machine, which is also known as 4th axis.If the 4 axis you bought has four feed axes (X, Y, Z, A), it can be processed by four-axis linkage, and it can process planes, reliefs, cylinders, non-standard three-dimensional patterns, corner repair of 3D patterns, etc.

4axis CNC Router Machine Specification and Parameters

#Working area: 1300*2500*200mm

#Spindle:China 3.0kw water cooling spindle

#4th Rotary: Diameter 100mm

#Control system:DSP A11 control system

#Drive system:China stepper motors and drivers

#Transmission:XY by helical gear, Z by Taiwan TBI ball screw

#Rail guide: XYZ axis adopt Taiwan Hiwin linear square rail guide

#Table:T-solt table PVC

#Fuling Inverter

#Tool sensor

#3.0kw dust collector

#Tools box (including all tools for machine)

#Software: Type3 software Artcam

#Japan Omron soft and hard limit switch

#Manual Luction system
