4th Rotary Hobby CNC Router for Sign Making At Cost Price

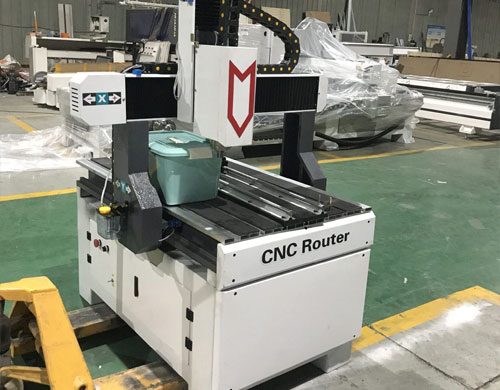

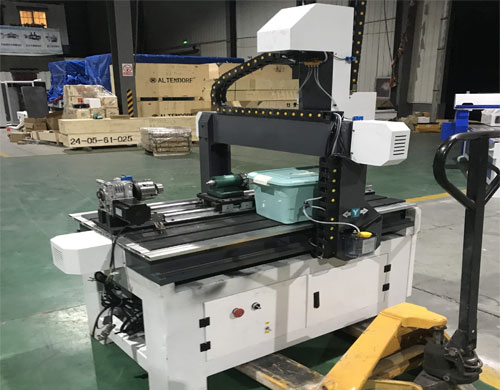

6090 Engraving Soft Metal CNC Router Machine

  • Brand: JNTECH
  • Model: JNM6090
  • Type: CNC Aluminum Milling Machine
  • Working Area: 600*900*100m
  • Incoterms: FOB QINGDAO
  • Payment Method: T/T, L/C,Credit Cards, e-Checking
  • Delivery: 5-7 Working Days
  • Supply Ability: 10 Sets / Month in Stock
  • Package: Strong Wooden Package
Yes I'm Interested

What makes Mini handheld cnc router hobby CNC router machines so unique and widely used in a broad range of industries?

CNC machines simplify aluminum machining, it doesn’t mean fabricating aluminum parts is any less complex than it used to be. There are many aluminum grades (or alloys) available in the market today, and the success of your project will depend on you choosing the most suitable aluminum alloy and Aluminum CNC milling machine for your project.

Why Aluminum and Aluminum Milling machine is popular?
Good Machinability: Aluminum is easier to machine than many other metals. It chips easily, making it easy for CNC machine operators to create complex parts quickly and accurately.

High corrosion resistance: Aluminum develops a thin hard film of oxide (aluminum oxide) when exposed to air or other oxidizing agents. This oxide makes aluminum corrosion-resistant and prevents chemical damage.

High strength-to-weight ratio: Given its high strength, aluminum is remarkably light. As such, you can make aluminum parts thicker and stronger while still reducing weight in applications that require lightweight materials.

Recyclability: Aluminum has high recyclability, making it perfect for businesses looking to mitigate the material wastage challenge of CNC machining.
Custom Finishing: Aluminum offers a wide range of surface finishing options, including anodizing and painting, to give your parts the perfect custom look.

Mini desktop6090/9012/1212/ cnc router suitable for diy woodworking, best cnc router for small shop, homeworking job choice it more, desktop cnc router australia and desktop cnc router uk use small size cnc router a lot, easy to operate and use.



6090 CNC Router Milling Cutting on Aluminum Machine Specification:

  • Working area: 600*900*100mm
  • 2.2kw Changsheng water cooling spindle,24000RPM
  • X Y Z axis Taiwan TBI ball screw transmission
  • Taiwan Hiwin 15 rails
  • Cast Iron frame
  • T-solt table
  • DSP RichAuto A11 System
  • Leadshine stepper motor and drivers
  • Fuling Inverter 2.2kw
  • Tool sensor
  • Standard box of tool
6090 Engraving Soft Metal CNC Router Machine Parameter

Working Area

X*Y*Z: 600mm*900mm*100mm

Control system

DSP A11 Control system

Inverter

Fuling inverter

Spindle

2.2kw water cooling spindle with 4axis

Moto

 Leashine stepper and motor

Transmission

 XY by helical gear, Z by Taiwan TBI ball screw

Machine bed structure

T solt table

ATC

Manuel tool change

Cutting speed

0-25m/min(depending on material and thickness)

Positioning accuracy

±0.01mm

Repositioning accuracy

±0.01mm

Eauipment power

8KW
