What is digital cutting?
With the advent of computer-aided manufacturing, a new type of digital cutting technology has been developed that combines most of the benefits of die cutting with the flexibility of computer-controlled precision cutting of highly customizable shapes.
Unlike die cutting, which uses a physical die of a specific shape, digital cutting uses a cutting tool (which can be a static or oscillating blade or mill) that follows a computer-programmed path to cut out the desired shape,consists of a flat table area and a set of cutting, milling and scoring attachments mounted on an arm. This arm allows the cutter to move left, right, forwards and backwards.

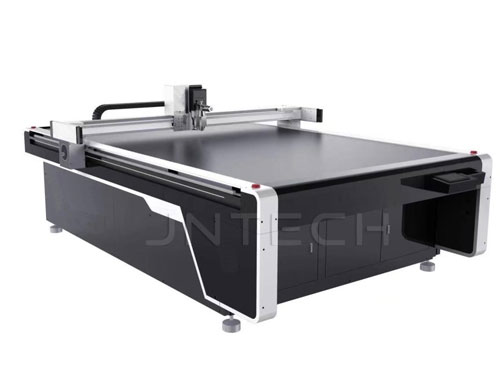

The printed sheet is placed on the table, and the cutter travels across the sheet along the programmed path to cut out the shape.A digital cutting machine consists of a flat table area and a set of cutting, milling, and scoring tools mounted on a positioning arm that moves the cutting tool in two dimensions. The sheet is placed on the table surface and the tool follows a programmed path through the sheet to cut the pre-programmed shape.
The biggest advantage of digital cutting is the absence of shape-specific dies, ensuring shorter turnaround times compared to die-cutting machines, as there is no need to switch between die-shapes, thus reducing overall production time. In addition, there are no costs associated with the manufacture and use of dies, making the process more cost-effective. Digital cutting is particularly suited for large format cutting jobs and rapid prototyping applications.
|
Working area |
1600×2500mm(Optional: 1300*900mm, 1300*2500mm, 2000*3000mm) |
|
Rated power |
12KW |
|
Multi-function head |
Oscillating knife+V cut+Press wheel |
|
Safety device |
Using infrared sensors, responsive, safe and reliable. |
|
translational velocity |
800-1200mm/s |
|
Cutting speed |
200-800mm/s(according to different cutting materials) |
|
Cutting thickness |
≤60mm(according to different cutting materials) |
|
Cutting materials |
Cardboard, paper, cartonboard |
|
Repeated accuracy |
≤0.1mm |
|
Machenical Precision |
Max. 0.02mm |
|
Control system |
Double 32bit RISC CPU + Huge reparogrammable logic gate arrays FPGA |
|
Operation mode |
Operating flat form+Data output control software |
|
Control Panel |
LCD touch screen English control system |
|
Capacity |
4GB |
|
Transmission system |
Delta servo motor, linear guide,synchronous belt,ball screw |
|
Other configuration |
7.5kw vacuum pump |
|
Auto feeding |
Include |
Applications of Automatic Cardboard Digital Cutting Machine
Automatic Cardboard Digital Cutting Machine.A professional CNC gasket cutting machine, using high-powered oscillating knife cutting tools, equipped with automatic nesting software to help you achieve automatic cutting of gaskets. It can cut non-asbestos gasket, graphite gasket, rubber gasket, Teflon gasket and other materials.
Cutting is a versatile process used to shape materials such as rubber, textiles, foam, paper, plastics, composites, and foil by trimming, forming, and shearing. IECHO provides professional products and technical services to more than 10 industries including Composite materials, Printing and packaging, Textile and garment, Automotive interior, Advertising and printing, Office automation, and Luggage.Digital cutting uses a blade which follows a computer-programmed path to create the shape.
