Application:Acrylic cutting,Thin acrylics, mat-board and wood,Plastics cutting,Wood / MDF /Plywood,Thin polyesters, adhesives and polycarbonate are common,Fabrics / Embroidery,Paper/Foils Converting.
Advantages:
—Good cutting quality:Narrow incision width (usually 0.1–0.5mm), high precision (normal hole center distance error 0.1–0.4mm, contour size error 0.1–0.5mm), incision surface roughness (usually Ra is 12.5-25μm ), slits generally do not need reprocessing to weld.
—Clean, safe and pollution-free:The operator’s working environment is greatly improved. The above significant advantages are enough to prove that: CO2 laser cutter has been and is replacing some of the traditional cutting process methods, especially the cutting of various non-metallic materials. It is an advanced processing method with rapid development and wide application.
|
No |

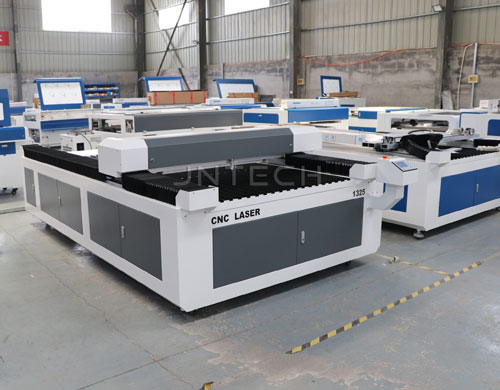

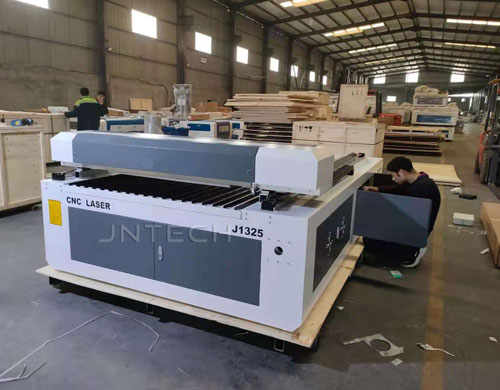

Model |
JNJ1325/JNJ1530 |
|
1 |
Effective working size |
1300*2500/1500*3000 |
|
2 |
Laser power |
Reci laser tube 100-150w |
|
4 |
Cutting speed |
0-200mm/s |
|
5 |
Working accuracy |
0.005mm |
|
6 |
Control system |
Ruida control system–model 6445G |
|
7 |
Guide rail |
Taiwan PMI square rail |
|
8 |
Motor |
Yako stepper motor |
|
9 |
Table |
Blade table |
|
10 |
Water pump |
ACO 500W Bigger |
|
11 |
Dust collector |
550W x air exhaust fan with tube ducts |
|
12 |
Transmission way |
Japan ONK Belt transmission |
|
14 |
Graphic format supported |
PLT,DXF,BMP,AI,DSP |
