#Gluing :Adopt advanced down-setting glue case,high speed glue heating;double spiral feeding structure,ensure its stability and glue evenly.
#End Cutting :By precise linear guide motion,adopt explorator automatic Tracking and high frequency,high speed motor high speed cutting and other structure, ensure the cutting surface flat and smooth.
#Rough Trimming :Rough trimming machanism used for repairing the excess edge materails,adopt automatic tracking and high-frequency motor fast cutting structure ensure the trimming plates smoothly.
#Fine Trimming:The device is used for trimming extra edge banding material from upper and under of edgeband for processing board;adopt explorator automatic tracking and high frequency,high speed motor and other structure,ensure upper and under of board is flat and smooth when edging.
#Straight Scraping:The device is used for removing corrugated trace due to the trim of linear motion by the cutting process to make the upper and under of sapwood more smooth and clean.
#Buffing: The device is used for cleaning processed board by cotton buffing wheel,ensure edging side is more smooth.
|
Model |

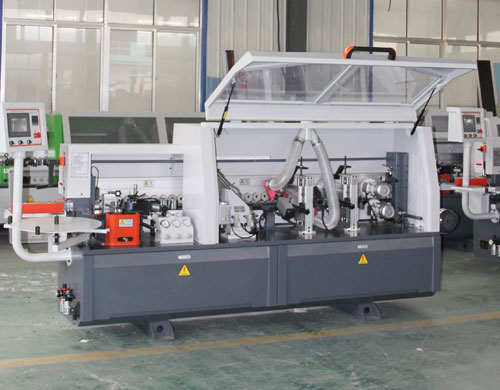

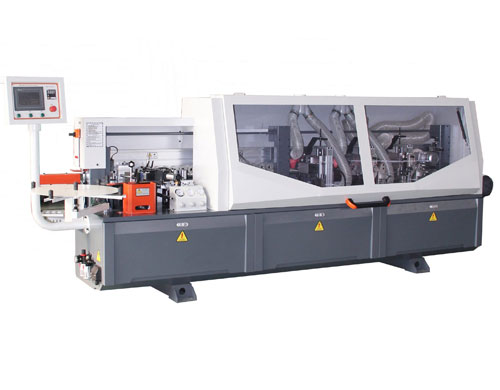

JNF506 Edge Banding Machine |
|
Motor power |
9.74kw |
|
Size |
4200×900×1600mm |
|
Feed speed |
12m/min |
|
Panel thickness |
10-60mm |
|
Edge thickness |
0.4-3mm |
|
Panel width |
≥ 80 |
|
Weight |
1600kg |
|
Working airpressure |
0.6Mpa |
What Can 6 Functions Automatic Edge Banding Machines Do?
Automatic edge banding machines are used to pre-mill, bond the edge banner to the substrate, trim the leading and trailing edges, trim top and bottom flush with the substrate, scrape any surplus, and buff the finished edge. All works will be finished in one machine, which is an upgraded version of the traditional manual edge banding in modern furniture making.
