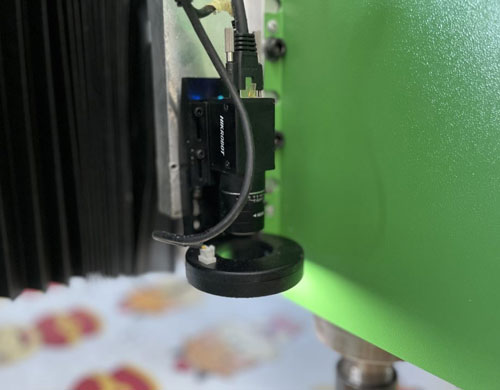

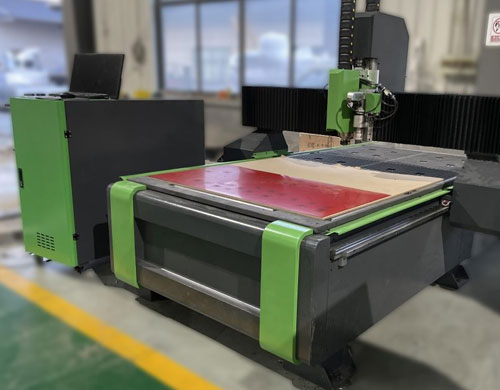

JNM1325 Wood Router with oscillating knife and CCD Camera Machine adopt Vision System. It is high-performance, low-cost solution camera that’s mounted on the head of the Wood CNC Router machine.JNM1325 Wood router machine quickly finds and recognizes conventional registration marks, adjusting the machine cutting path as necessary to achieve exact alignment with printed shapes.

CNC Router combine Oscillating knife cutter with CCD camera demo multi-function ,hasboth tradtional CNC router machine features also have oscillating knife machine feature, it is very popular during Market.

JNM1325 Wood Router with oscillating knife and CCD Camera Parameters

Parameters JNM1325 CNC Wood Router Machine Standard Specifications
Working Area:                     X*Y*Z:1300mm*2500mm*200mm
Control system:                  Weihong Control system
Inverter:                                Fuling inverter
Spindle:                                3.0kw water cooling spindle+Oscillating knife+CCD Camera
Motor:                                   Leadshine servo motor and drivers system
Transmission:                     X Y Gear tranmission
Machine bed:                     T solt or T solt +Vacuum table
Electrical device:                French Schneider
Cutting speed:                   0-35m/min(depending on material and thickness)
Positioning accuracy:       ±0.02mm
Repositioning accuracy:  ±0.02mm
Power supply:                     380V/3P/50?60?HZ?220V/3P/50?60?HZ?
Software:                             Artcam/Ucancam/Aspire/Alphacam/Fusion 360/UG etc.
