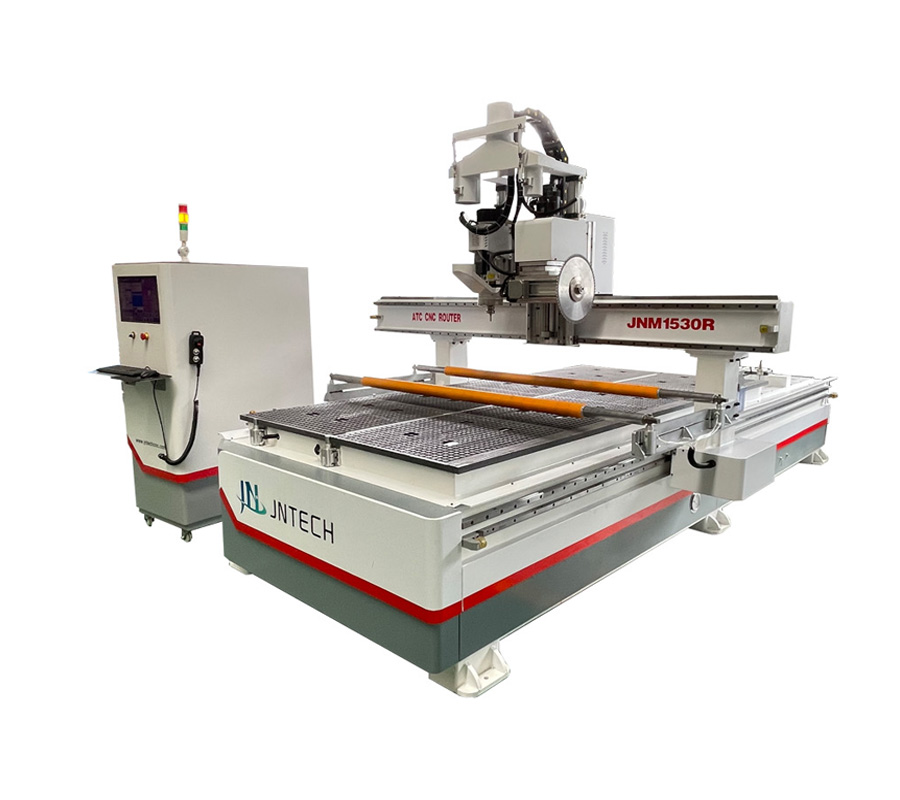

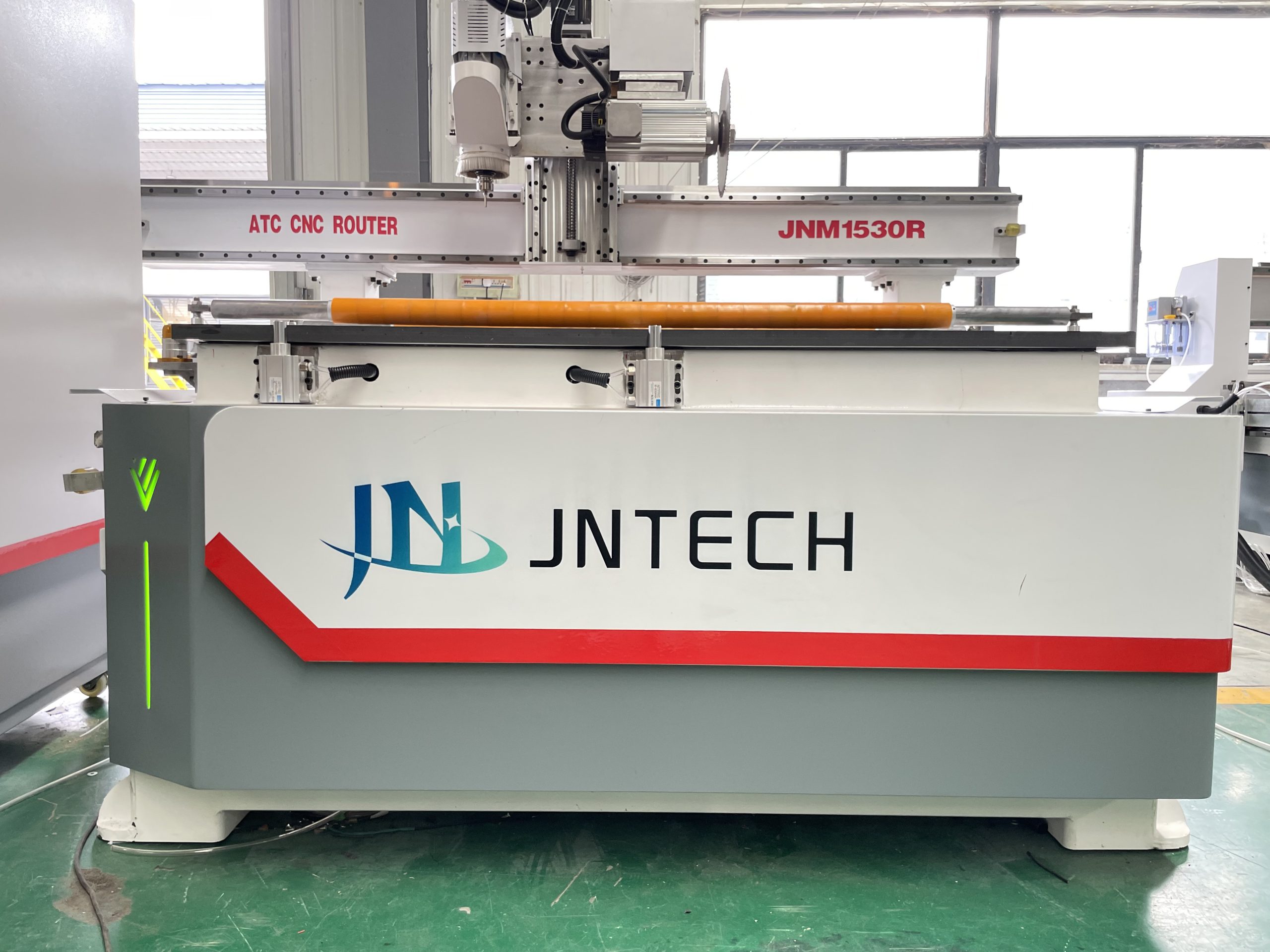

JNM1530LR Saw Cutting CNC Router Machine is a new model ATC CNC Router machine, it have cnc router 3axis all function,  cutting engraving milling etc, more important: Adding Saw cutting can rotation 180° so saw can cut all direction, XY axis direction, 0-180 °Forward and reverse direction?more and more buyer choice this machine, working speed is fast, saw cutting fast and cutting deepth, saw diameter: 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 500mm etc.

If you only want do cutting on X Y axis direction, also can choice Cheap CNC router with  saw cutting model.

JNM1530R ATC CNC Wood Router with Saw Cutting

#Model Name:JNM1530R (CNC Wood Router with Saw Blade Cutting)

#Working Size:1500*3150*350mm

#Spindle:China HQD ATC 9.0kw Air cooling spindle, 24000RPM

#12pcs Follow Liner tool change+ISO30 tool holder 12pcs+ ER32 tool collect 12pcs

#Saw Blade:7.5kw Saw Blade Head one pcs(Can cut all direction), diameter 350mm

#Control System:Taiwan LNC Control System

#2 pcs Press wheel for stable Wood material

#Motor and Driver:Japan Yskawa servo motor and driver 1300w

#Reducer:Japanese Shimpo

#Inverter:11kw Fuling Inverter

#Vacuum+T slot Table

#7.5kw Air Vacuum Pump

#Tool sensor

#Taiwan H-Win square guide rails with 30mm

#Japanese Omron Original Limit Switch

#Automatic postion cylinder 6pcs

JNM1530LR ATC CNC Router Machine Advantages

1. Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
2. Japanese 1300w YAKSAWA servo motor makes the machine stable running with low noise, high speed and high accuracy.
3. China ATC 9kw HQD spindle makes machine with high precision, long service time and stable movement.
4. Configured with carousel tool magazine of 12 tools, the machine can change tools speedy and freely.
5. High power suction vacuum pump, air-cooling, water-cooling or becker pump.
6. Saw Cutting can  Rotation 0-180° and Cutting 0-360° Directions
7. Two Rollers can stable wood plate when machine working, after finishing working it will up automaticlly.
8.  Automatic lubricating system, one touch can finish periodic maintenance easily.
