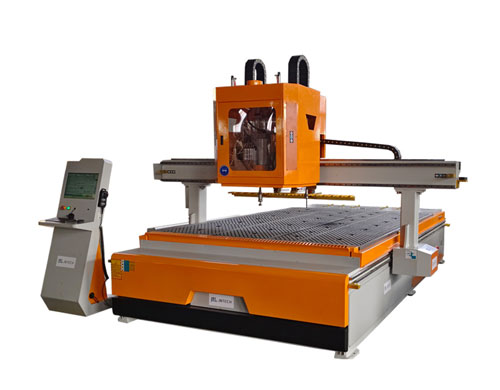

JNM2030L Furniture Making CNC Routers With Drilling Bank is best popular during furniture and cabinent marking, two spindle can do cutting and drilling job well.
| Parameters | Standard Specifications |
| Working Area | X*Y*Z:2000mm*3000mm*200mm |
| Control system | Syntec 60W-E Control system |
| Inverter | Taiwan Delta inverter |
| Spindle | Italy HSD 9kw air cooling ATC spindle+HQD drilling bank 4+5 |
| Motor | Japan 850w Yaskawa drivers system |
| Transmission | Shimpo reducer |
| Machine bed structure | T solt +Vacuum table |
| ATC | 16 PCS carsouel tool changer |
| Electrical device | French Schneider |
| Cutting speed | 0-35m/min(depending on material and thickness) |
| Positioning accuracy | ±0.02mm |
| Repositioning accuracy | ±0.02mm |
| Eauipment power | 22KW |
| Calibration | Automatic calibrate tool sensor |
| Command Language | G code |
| Power supply | 380V/3P/50?60?HZ?220V/3P/50?60?HZ? |
| Interface | USB |
| Software | Artcam/Ucancam/Aspire/Alphacam/Fusion 360/UG etc. |
| Running Environment | Temperature: -10?~45? |
