Gantry CNC Plasma Cutting Machine Applicable Materials:
All kinds of metal materials such as steel, copper,aluminum and stainless steel can be processed.Applies to iron plate, aluminum plate galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal. Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power,Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.

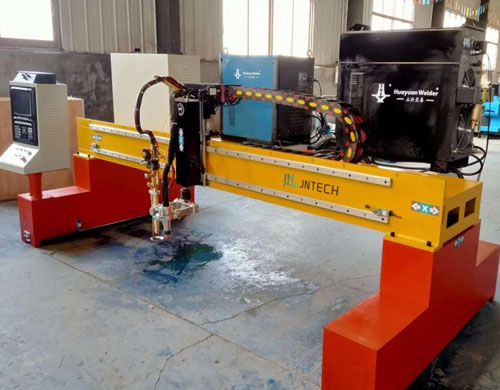

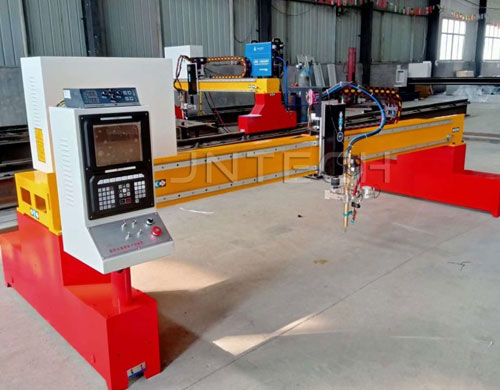

CNC Plasma cutting machine (high configuration)
X,Y working area: 2000*4000mm
Z working area: 150mm
Lathe bed: Very thick steel structure
Machine Power? 16kw
Working voltage? 380V three phase 60hz
Reposition precision: 0.02mm
Processing precision: 0.1mm
Maximum cutting speed: 12000mm/min
Torch Height control mode: Automatic
Plasma power supply: 60-400A
Control system: STARfire
Motors: Stepper motor
Software: Starcam
1. we equipped the two fan for take the cutting smoke out from the room, front fan will blow to back, the back fan will exhaust the smoke out from the machine and out from the room. This way, will efficiency to let the workshop in the good environment. While other factory does not have this fan or only have one. All our machines have to be checked three times, then allow to send out ,and finally will put one 8GB flash disk into the package, when the customer received the machine, can easy check the video from the 8GB flash disk ,then do the easy operation, in the video nearly like hand by hand do the teaching job, so can let the customer in the shot time to let the machine create the profit.
2. The painting: all our machine body have been processed by professional anti-rust treatment. First, we spray 2 times anti-rust paint to ensure that all parts of the machine in a fully protected state, and then spray color. This can effectively prevent the machine rust, resulting in damage to the machine. Other manufacturers do not take anti-rust treatment or only spay 1 time rust paint.
3. we will free provide 2G processing design (USD 320) and Australia professional metal cutting software for you, in the 2G processing design have thousand beautiful graphic, after you get the machine, you can let the machine do a lot of beautiful work, while no need find the engineer to help you to design.
4. Machine structure is designed by famous mechanical professor, to add many columns for each bean. So that the machine body can bear more weight for large, thick metal sheets without deforming. But some small factories will not add these parts for saving cost, their machine is easy to deform for thick metal.
